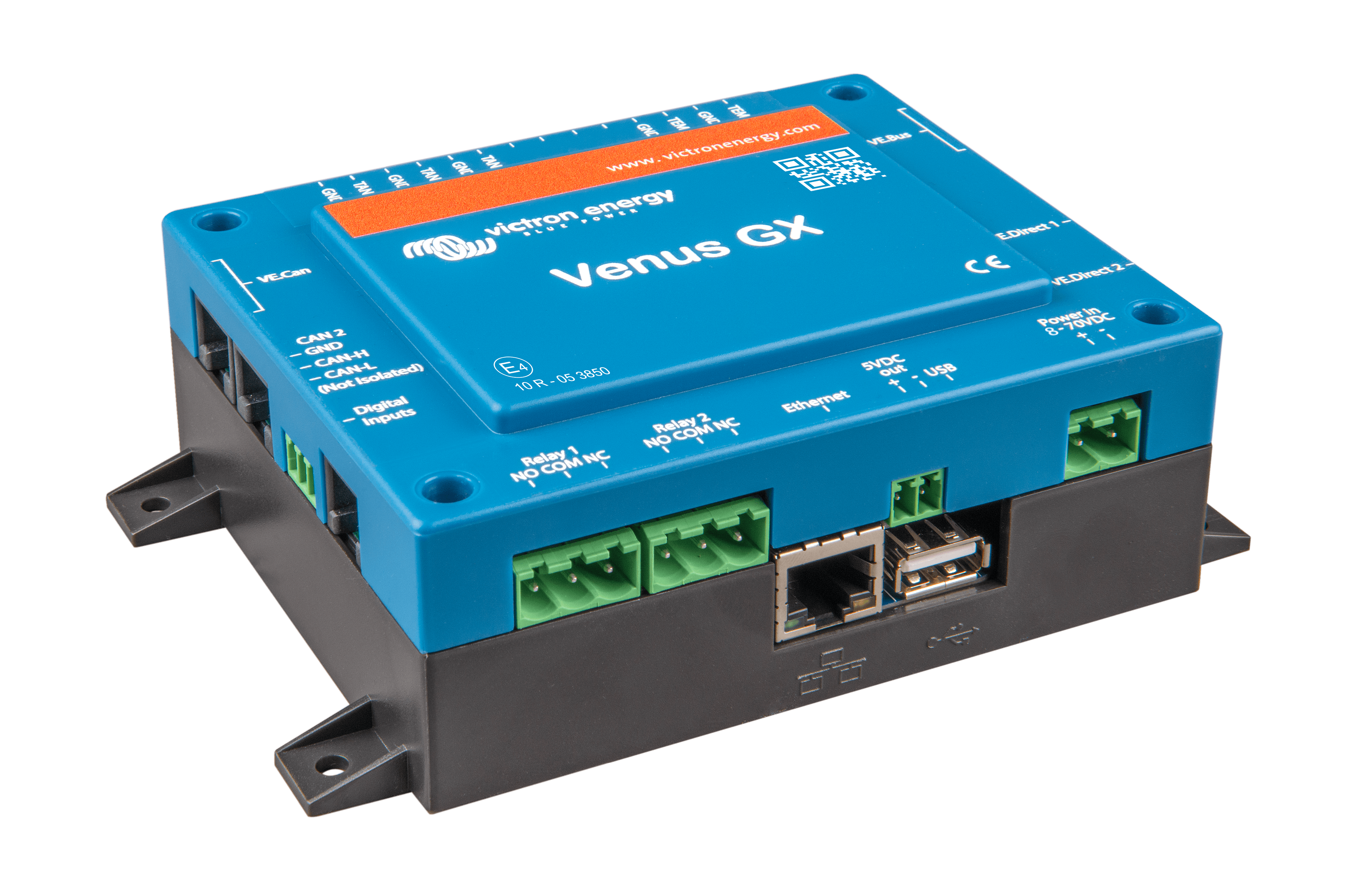

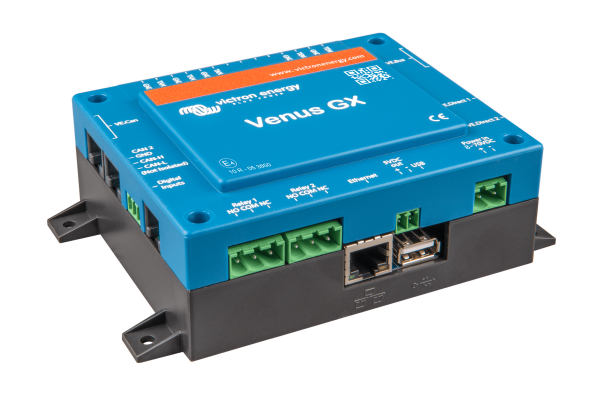

Victron Venus GX communication-centre BPP900400100

The Victron Energy Venus GX System Control Module (MPN BPP900400100) offers intuitive operation and monitoring of all power systems based on Victron components. It is particularly well suited as the central hub in an ESS (Energy Storage System). In terms of functionality, the Venus GX is similar to Victron’s Color Control GX, but without a display and without a built-in modem, making it significantly more affordable. It transmits all system data to Victron’s free VRM Portal, from which you can monitor and manage your power system globally.

In addition to power electronics, tank levels of up to 3 tanks can also be monitored and visualized in the VRM Portal. In addition to remote monitoring of connected devices, remote configuration is also possible.

Remote Console on the VRM

Setup and monitoring are done via the Remote Console—either through the VRM, the built-in Wi-Fi access point, or the local LAN/Wi-Fi network.

Automatic Generator Start/Stop

A highly flexible start/stop system. It uses charge, voltage, load, and other parameters. Specific settings for quiet times and an optional monthly test run can be configured.

Internet Connection

The Venus GX can be connected to the internet via an Ethernet cable and via Wi-Fi. The Venus GX does not have a built-in cellular modem: there is no SIM card slot. Instead, use a standard GPRS or 3G router.

Tank Level Sensor Inputs

The tank level sensor inputs are resistive: connect them to a resistive tank sender. Such tank senders are not offered by Victron. The tank level ports can each be configured to work with European tank senders (0 - 180 Ohms), or US tank senders (240 - 30 Ohms).

Data Logging

If the system is connected to the internet, all data is sent to the VRM Portal. If no internet connection is available, the Venus GX stores the data internally for up to 48 hours. By inserting a microSD card or USB stick, additional data can be stored. These files can be uploaded to the VRM Portal or converted offline for analysis using the VictronConnect App.

Additional Highlights

• The Venus GX can automatically update itself via the internet when a new software version is available.
• Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic.
• Use the Venus GX as a Modbus-TCP gateway to all connected Victron products.
• Linux OS-based operating system

Supported Products

• Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Configuration changes are possible (only remotely via internet, not without internet access).
• BlueSolar MPPT solar chargers with a VE.Direct port.
• BlueSolar MPPT 150/70 and MPPT 150/85 with VE.Can port. If multiple BlueSolar MPPTs with VE.Can are used in parallel, all information is combined into one.
• Devices from the BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct cable for this.
• Devices from the BMV-600 family can be connected to the VE.Direct ports on the Venus GX. An additional cable is required.
• Lynx Ion + Shunt
• Lynx Ion BMS
• Lynx Shunt VE.Can
• Skylla-i battery chargers
• NMEA2000 tank sensors
• A USB GPS can be connected to the USB port. The data is sent to the VRM Portal for tracking. The most recent position is then displayed on the map in the VRM.
• Fronius PV inverters

Scope of Delivery:

1x Victron BPP900400100 Venus GX System Control Module
